I. Product Overview
The CH3-24kV/185 630A medium-voltage switchgear contact box (with shielding) adopts an epoxy resin APG pressure gel molding structure. It is a dedicated insulation connection device for 24kV-class handcart-type medium-voltage switchgear. It is mainly used in 24kV-class handcart-type medium-voltage switchgear, playing the roles of insulation isolation, connection transition and shielding protection. It can provide effective insulation protection for the contacts inside the switchgear, adapt to power scenarios with conventional current transmission, and ensure the safe and stable operation of the power system.
II. Technical Parameters
| Parameters | index |
| Rated voltage | 24KV |
| Rated current | 630A |
| Power frequency withstand voltage | 55KV/1min |
| Lightning impulse voltage | 125KV |
| glass transition temperature | ≥105℃ |
| creepage distance | >520mm |
| Installation center distance | 185mm |
| Temperature rise limit | Under rated current, the temperature rise at the outgoing terminal shall not exceed 65℃. |
| Material | Epoxy resin housing + copper alloy contacts + shielding structure |
| Protection level | IP67 |
III. Scope of Application
This contact box is suitable for 24KV level handcart-type medium-voltage switchgear, and is commonly used in power distribution systems, industrial substations, high-rise building power distribution rooms, industrial and mining enterprise power distribution systems and other power facilities. As an insulation protection and connection transition component for the internal contacts of the switchgear, it provides reliable insulation protection for the switching and isolation of high-voltage circuits, and is suitable for the power transmission requirements of conventional current. The shielded version can effectively reduce electromagnetic interference.
IV. Usage Conditions
1. The altitude at which the installation is performed must not exceed 1000 meters;
2. The ambient air temperature is 5℃ to +40℃, and the relative humidity at 20℃ does not exceed 85%.
3. The installation site should be free from gases, vapors, dust, and other explosive and corrosive media that could seriously affect the insulation performance of the contact box;
4. It should be installed in a location free from severe vibration and impact to ensure the structural stability of the product;
5. Suitable for indoor installation and compatible with standard support bracket installation methods.
V. Product Characteristics
1. Excellent insulation performance : It is molded with epoxy resin APG process, which has good insulation performance, can effectively isolate high voltage circuits, prevent leakage and short circuit risks, and withstand high voltage impact;
2. Shielding and protection function : It can be equipped with a shielding structure, which can effectively reduce electromagnetic interference and ensure the stability of electrical signal transmission;
3. Stable and durable structure : The one-piece molded structure has high mechanical strength and can withstand the mechanical and electrical stress inside the switch cabinet, resulting in a long service life;
4. Good temperature rise control : Under the long-term operation of rated current, the temperature rise at the output end does not exceed 65℃, which can effectively ensure the safe operation of the equipment and avoid failures caused by excessive temperature rise;
5. Easy installation : Standardized installation dimensions adapt to the installation requirements of conventional 24KV medium-voltage switchgear, facilitating on-site installation and replacement;
6. Corrosion and oxidation resistance : Epoxy resin material has good corrosion and oxidation resistance, and can adapt to a variety of complex electrical environments;
7. Excellent surface finish : The surface is smooth and burr-free, easy to install, and has good flame retardant and wear-resistant properties.

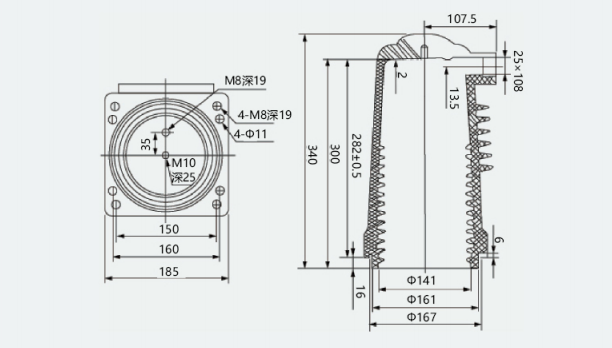

Product Image
