CH3-40.5KV/660 Dual-Port Contact Box
Product Overview
The CH Dual-Port Contact Box is a dedicated insulating connection device for high-voltage switchgear. Manufactured using epoxy resin APG (Automatic Pressure Gelation) process molding technology, it is primarily used in switchgear within high-voltage power distribution systems to provide bidirectional electrical circuit transition connections and insulating isolation. The unit delivers reliable insulation protection for the switching and connection of high-voltage circuits, ensuring the safe and stable operation of power systems.
Application Scope
The Dual-Port Contact Box is suitable for 35KV–40.5KV class draw-out (truck-type) switchgear, centrally-mounted switchgear (C-GIS), and other high-voltage power distribution equipment. It is commonly installed in industrial substations, large commercial building distribution rooms, and power dispatch centers, serving as an insulating transition component for bidirectional high-voltage connections to achieve reliable interconnection and insulating isolation between two electrical circuits.
Operating Conditions
Installation altitude shall not exceed 1000 m above sea level;
Ambient air temperature range: −40°C to +70°C; relative humidity not exceeding 95% (at 25°C);
The installation environment shall be free of gases, vapors, dust, or other explosive and corrosive media that could significantly degrade the insulating performance of the contact box;
The unit shall be installed in locations free from severe vibration and mechanical shock to ensure structural integrity.
Product Features
Superior Insulation Performance: Manufactured via epoxy resin APG process molding, providing excellent insulating and sealing properties. Effectively isolates high-voltage circuits and prevents ingress of external dust and moisture, ensuring reliable electrical connections.
Reliable Electrical Conductivity: Terminals are made of copper alloy with tin-plating or silver-plating treatment; contacts are fabricated from stainless steel or copper, offering outstanding electrical conductivity, corrosion resistance, and wear resistance to ensure stable electrical signal transmission.
Robust and Durable Construction: Monolithic molded structure provides high mechanical strength, capable of withstanding the mechanical and electrical stresses present inside switchgear. Suited to the demanding operating conditions of high-voltage distribution systems with extended service life.
Ease of Installation: Standardized mounting dimensions compatible with conventional high-voltage switchgear installation requirements, facilitating on-site installation and replacement.
Wide Environmental Adaptability: Wide operating temperature range design suitable for extreme cold and high-temperature environments; protection rating IP67 with excellent dust-proof and waterproof performance.
Product Photo
| Parameter | Specification (based on CH3-40.5KV/660 Dual-Port Contact Box) |
|---|---|
| Rated Voltage | 40.5 KV |
| Rated Current | 630 A – 1250 A |
| Power Frequency Withstand Voltage | 95 KV / 1 min |
| Lightning Impulse Withstand Voltage | 185 KV |
| Operating Temperature Range | −40°C to +70°C |
| Protection Rating | IP67 |
| Mechanical Service Life | 2000 operations |
| Materials | Epoxy resin housing + copper alloy terminals + stainless steel contacts |
Product Information
General
Key source specifications include Rated Voltage: 40.5KV; Rated Current: 630A-1250A; Power-Frequency Withstand Voltage: 95KV/1min; Material: Epoxy ResinHousing + +.
Features
Epoxy-resin casting is specified in the source material for stable insulation, mechanical strength, and maintenance-friendly operation.
Waterproof and dust-resistant protection is specified for harsh indoor or outdoor cable-system environments.
Application
This insulation or sensing component is intended for switchgear, busbar, contact-box, bushing, sensor, or cabinet-support applications according to the matched model.
Product Images

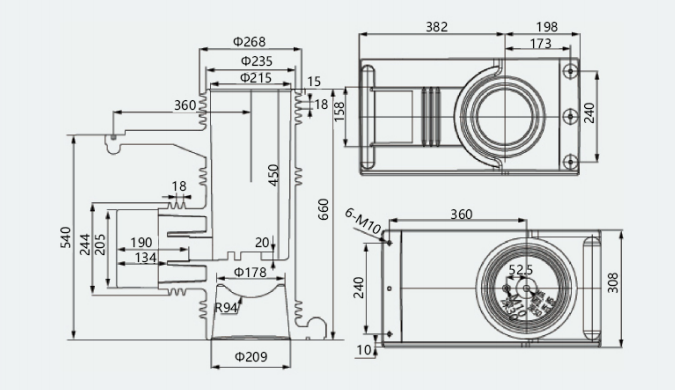

Technical Parameters
| Parameter Item | CH3-40.5KV/660Dual-PassContact Box |
|---|---|
| Rated Voltage | 40.5KV |
| Rated Current | 630A-1250A |
| Power-Frequency Withstand Voltage | 95KV/1min |
| Lightning Impulse Voltage | 185KV |
| Temperature | -40°C~+70°C |
| Protection Degree | IP67 |
| Source specification | 2000 Switching |
| Material | Epoxy ResinHousing + + |
Order information
Before ordering, confirm rated voltage, rated current, protection degree, and the required quantity according to the project drawings and source specification.
