BZ7-35 Corner Plate (ABB 180 width)

I. Product Overview

The BZ7-35 Corner Plate is an insulation component designed specifically for 35kV high-voltage switchgear . It is compatible with ABB standard cabinet structures (180mm width) and is molded using epoxy resin APG process. It is mainly used to fix contact boxes, optimize electrical clearances in busbar compartments, and ensure the insulation safety and mechanical stability of high-voltage equipment.

II. Technical Parameters

III. Product Characteristics

1. High insulation performance : The epoxy resin material has excellent electrical insulation properties, which can effectively improve the electrical clearance inside the switch cabinet and avoid phase-to-phase/to-ground insulation breakdown.
2. Mechanical stability : The triangular reinforcing rib structure design provides strong resistance to bending and impact, reliably fixes the contact box, and can withstand mechanical stress during long-term operation.
3. Highly adaptable : Strictly matches the dimensions of ABB standard 35kV switchgear, with precise mounting holes, requiring no additional processing, and can directly replace original parts.
4. Resistant to environmental aging : Resistant to moisture, salt spray, and chemical corrosion, suitable for long-term operation in indoor high-pressure environments, with a long service life.
5. Safe and environmentally friendly : Contains no toxic or harmful substances, has good flame retardancy, can effectively suppress the spread of flames in the event of a fire, and meets the safety standards for electrical equipment.
6. Structural optimization : The hollow design reduces the load on the cabinet while ensuring strength, and facilitates installation and maintenance.

IV. Scope of Application

• Applicable to busbar compartments and contact box areas of 35kV indoor high-voltage switchgear (ABB standard structure).
• As a fixed support component for the contact box, it is used to separate the high-voltage live parts from the metal shell of the cabinet and optimize the electric field distribution.
• It can be used for insulation modification and component replacement of other brands of high-voltage switchgear with the same voltage level and structure.
• It is widely used in high-voltage power distribution scenarios such as substations, power distribution rooms, and power distribution systems in industrial enterprises.

V. Usage Conditions

(I) Environmental conditions

• Altitude: ≤1000m (high-altitude type can be customized up to ≤4000m)
• Ambient temperature: -40℃ ~ +40℃, daily average temperature ≤35℃
• Relative humidity: daily average ≤95%, monthly average ≤90% (at 25℃)
• Locations free from severe vibration, impact, and significant tilt.
• An environment free from fire, explosion hazards, severe pollution, chemical corrosion, and violent vibration.
• Indoor environment free from significant condensation, salt spray, and dust pollution

(II) Installation Requirements

1. Before installation, inspect the product’s appearance to ensure there are no defects such as cracks, damage, or bubbles.
2. Position the switchgear strictly according to the requirements of the drawings, use matching bolts for tightening, and ensure that the torque meets the electrical equipment installation specifications.
3. After installation, the fit between the contact box and the bend plate must be verified to ensure that there is no looseness or misalignment.
4. Installation, disassembly, or maintenance operations are strictly prohibited while the circuit is energized.
5. During transportation and storage, avoid collisions and exposure to sunlight, keep the container dry and well-ventilated to prevent a decline in insulation performance.

VI. Precautions

1. This product is an insulating component and must not come into contact with corrosive substances such as strong acids, strong alkalis, and organic solvents.
2. Avoid excessive hammering or bending during installation to prevent the epoxy resin from cracking.
3. If any abnormalities such as surface creep, cracking, or discoloration are found during operation, power should be cut off immediately and the device replaced.
4. The product must be used in conjunction with contact boxes and insulators of the same voltage level and specifications, and different models of components must not be mixed.
5. Waste products should be disposed of in accordance with the environmental protection requirements for power equipment, and should not be discarded at will.

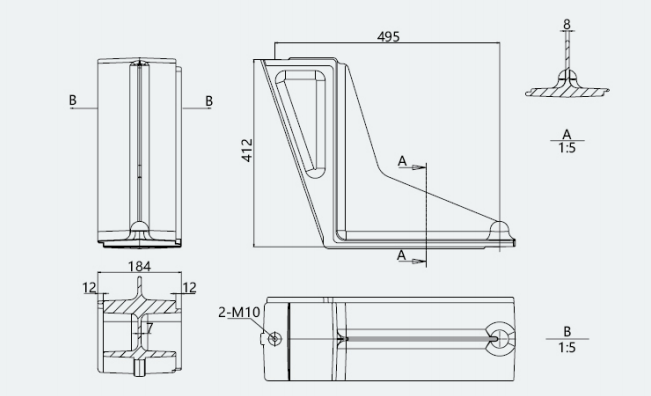

Product Images
