JY STT-15/200 15kV 200A Double-pass casing connector

I. Product Overview

The JY STT-15/200 15kV 200A Double-pass casing connector is a detachable double-branch cable casing accessory designed specifically for 15kV (10kV level) medium-voltage power distribution systems. It features a fully insulated, fully sealed, and touch-accessible structure and is a key component for ring main units, prefabricated substations, cable branch boxes, and other equipment. It enables the insulated and parallel connection of the equipment casing with two cable accessories. It can also be used with elbow-type cable joints, surge arresters, grounding devices, etc., to create a “one-to-two” power distribution interface, combining grounding protection, insulation isolation, and line branching functions. It is widely used in urban power distribution, industrial power distribution, and new energy power distribution scenarios.

II. Product Characteristics

1. Electrical and insulation properties

• Made of high-purity EPDM ethylene propylene diene monomer rubber through integral injection molding, it has no seams or air gaps, excellent insulation performance, can withstand the rated voltage of 15kV system and short-time overvoltage, meets the operating requirements of the 10kV system with a maximum operating voltage of 17.5kV, and has sufficient insulation margin.
• With an internal electric field optimization structure and stress control layer, the electric field is evenly distributed, effectively suppressing partial discharge. There is no risk of electrical erosion or breakdown during long-term operation, and the partial discharge amount is ≤10pC (1.5U₀).
• It comes with a grounding lead, which can achieve reliable grounding, effectively release fault current and induced voltage, and can be equipped with a live display device to intuitively monitor the live status and eliminate the risk of misoperation.
• The conductive contact parts are made of copper-tin plated, which has excellent conductivity, low contact resistance, low heat generation during long-term operation, strong corrosion and oxidation resistance, can carry two 200A currents at the same time, and has stable electrical performance.

2. Structural and Safety Features

• With a fully insulated, fully sealed, and touch-accessible structure, the outer layer has high insulation strength, allowing direct contact with the outer casing during operation without the risk of electric shock, thus ensuring the safety of maintenance personnel.
• The dual-channel integrated design is compatible with standard American/European 15kV equipment bushing interfaces, allowing simultaneous connection of two cable accessories to achieve line branching. It features a compact structure, convenient installation, and requires no additional adapters.
• The design prevents mis-insertion and incorrect connection. The interface size is standardized and can only be matched with accessories of the corresponding specifications, preventing the mixing of accessories of different specifications. It has a built-in positioning and locking structure to prevent loosening and falling off after installation.
• The grounding lead uses a yellow-green dual-color dedicated grounding wire, which is firmly connected and can be directly connected to the grounding grid, ensuring reliable grounding and effectively improving system safety.

3. Environmental and Weather Resistance

• It has excellent weather resistance and can adapt to a wide temperature range of -40℃ to +90℃. The elasticity and insulation properties of the rubber do not decrease under high and low temperatures, and there is no risk of cracking or embrittlement. It is suitable for various outdoor and indoor scenarios.
• Moisture-proof, waterproof, stain-proof, and salt spray-proof, with an IP67 protection rating, it can operate stably for a long time in harsh environments such as underground, humid, and dusty conditions, and is not afraid of rain or condensation corrosion.
• It is resistant to aging, ultraviolet rays, and ozone corrosion, with a service life of over 30 years. It requires no maintenance and reduces subsequent operation and maintenance costs.

4. Mechanical and Adaptation Characteristics

• It has high mechanical strength, is impact and vibration resistant, and can withstand mechanical stress during transportation, installation and operation without deformation or damage risk. Its seismic resistance level reaches level 8.
• It is compatible with 15kV 200A standard equipment bushing interfaces, and its two output terminals are interchangeable with elbow-type cable joints, surge arresters, and grounding devices of the same specifications, making it highly versatile.
• The interface is standardized and conforms to IEEE 386 and relevant domestic standards. It can be adapted to the equipment bushings of mainstream 15kV ring main units, box-type substations, and cable branch boxes to realize the line branching requirements of “one inlet and two outlets”.

III. Technical Parameters

Parameter categories	project	Technical indicators
Rated electrical parameters	Rated voltage (Ue)	15kV (Applicable to 10kV systems, maximum operating voltage 17.5kV)
	Rated current (Ie)	200A (single-channel), two channels operating in parallel
	Rated frequency (fn)	50Hz/60Hz
	Power frequency withstand voltage	42kV/5min (dry test), 38kV/5min (wet test), no breakdown, no flashover.
	Lightning impulse withstand voltage	95kV (peak value), no breakdown, no flashover
	Partial discharge quantity	≤10pC (below 1.5U₀)
	Rated short-circuit withstand current	16kA/2s (20kA/2s optional, depending on system requirements)
	Contact resistance	≤100μΩ (single channel)
Structural and material parameters	Main material	EPDM (ethylene propylene diene monomer) rubber (insulating layer), tin-plated copper (conductive contacts)
	Protection level	IP67
	Interface Standard	1 input terminal (15kV American standard bushing interface), 2 output terminals (15kV 200A standard accessory interface)
	grounding method	It comes with a yellow-green bicolor grounding lead for direct grounding.
Environmental parameters	Applicable altitude	≤2000m (Customization available for high altitudes)
	Ambient temperature	-40℃/ +90℃ (operating temperature), -40℃/ +70℃ (storage temperature)
	relative humidity	≤100% (no condensation)
	Seismic resistance level	Level 8
Implementation Standards		IEEE 386, GB/T 12706, DL/T 404, GB/T 11022

IV. Scope of Application

1. Applicable voltage levels : 10kV~15kV AC medium voltage power distribution systems, compatible with equipment bushing interfaces with a maximum operating voltage of 17.5kV.
2. Applicable equipment scenarios :
3. Bushing interfaces for power distribution equipment such as 15kV ring main units, prefabricated substations, cable branch boxes, and American-style prefabricated substations enable “one inlet and two outlets” branching of the line.
4. Used in conjunction with elbow-type cable joints, surge arresters, and grounding devices to construct dual-path cable terminals and dual-path surge arrester interfaces;
5. Urban power distribution network cable lines, power distribution systems of industrial and mining enterprises, and power distribution interfaces for new energy (photovoltaic/wind power) booster stations;
6. Insulated conduit connections for equipment in various scenarios such as indoor/outdoor power distribution rooms, underground pipe corridors, and cable tunnels, meeting the branching requirements of power lines.
7. Function and Purpose : Enables the insulated and sealed parallel connection of equipment bushings and two cable accessories, while also providing grounding protection, insulation isolation and line branching functions, providing a safe and reliable “one-to-two” interface solution for power distribution systems.

V. Usage Conditions

1. Normal operating conditions

• Altitude: ≤2000m;
• Ambient temperature: -40℃~+90℃; equipment operating temperature complies with relevant standards.
• Relative humidity: ≤100% (no condensation);
• Environmental conditions: No corrosive gases, no flammable or explosive media, no severe vibration or impact;
• Installation method: It is compatible with standard equipment sleeve interfaces and can be installed horizontally or vertically. The installation space must meet the requirements of the operation of the two accessories.

2. Special usage conditions (customization required)

• The altitude exceeds 2000m;
• The ambient temperature exceeds the range of -40℃ to +90℃;
• Severely polluted, salt spray, and chemically corrosive environments;
• High vibration and high impact conditions;
• Non-standard equipment sleeve interface specifications;
• Special grounding requirements and high pollution levels.

VI. Installation and Maintenance

1. Installation Requirements

• Before installation, inspect the product appearance for cracks, damage, bubbles, and undamaged insulation surfaces; check that the grounding lead is intact and free of rust, and that all accessories are complete.
• Clean the surface of the equipment sleeve interface to remove oil, dust, and foreign objects, ensuring the interface is dry and clean.
• Apply a special silicone grease lubricant evenly to the inner wall of the input end of the double-ended bushing connector to avoid damaging the insulation layer during installation.
• Slowly push the connector into the equipment sleeve interface to ensure it is fully in place and lock the positioning structure; connect the grounding lead to the grounding grid, with a grounding resistance ≤4Ω.
• The two output terminals are connected to the corresponding elbow-type cable connectors, surge arresters, and other accessories to ensure that the accessories are installed in place and the anti-detachment device is locked.
• After installation, insulation resistance and power frequency withstand voltage tests are conducted. Only after passing these tests can the equipment be put into operation.

2. Maintenance Requirements

• Regularly inspect the appearance of the connectors, ensuring there are no cracks, discharge marks, or dirt accumulation, and that the grounding lead and both accessories are securely connected without loosening.
• Regularly test the insulation resistance to ensure that the performance meets the requirements and to detect potential faults in a timely manner.
• Clean the surface of the connector to remove dust and dirt, and keep the insulation surface dry and clean to avoid corrosion from oil and chemicals.
• If any abnormalities such as cracks, damage, discharge, or overheating occur in the connector or accessories, stop using them immediately and replace them. It is strictly forbidden to operate them while they are malfunctioning.
• Special insulated tools must be used for plugging and unplugging accessories. It is strictly forbidden to operate live connectors by hand. Power distribution safety regulations must be strictly followed during operation.

VII. Precautions

1. The product must be installed, debugged, and maintained by professional electrical personnel with medium-voltage power distribution construction qualifications. Operation by non-professional personnel is strictly prohibited.
2. The product must be used in conjunction with the corresponding specifications of equipment bushings, elbow cable joints, surge arresters, etc. It is strictly forbidden to use the wrong specifications of interfaces, otherwise it will lead to insulation failure and safety accidents.
3. The connector must not be disassembled or modified without authorization, otherwise the warranty and safety guarantee will be lost. It is strictly forbidden to use non-special tools to forcibly install or disassemble the connector.
4. It is strictly forbidden to connect accessories of different voltage or current levels to the two output terminals at the same time. They must be used in accordance with the system parameters.
5. When storing, it should be placed in a dry, ventilated, and cool environment, avoiding direct sunlight, high temperature, humidity, and compression. It is strictly forbidden to contact with sharp objects that may damage the insulation layer.
6. When operating accessories on live circuits, it is essential to strictly adhere to power distribution safety regulations, implement appropriate safety precautions, and strictly prohibit any unauthorized operations.

VIII. Model Description

Model Identification	meaning
JY	Product series code
STT	Double-through sleeve fitting series code
15	Rated voltage rating, compatible with 15kV systems, maximum operating voltage 17.5kV
200	Rated current rating, single-channel adapter 200A current rating
Double-pass casing connector	Double-ended bushing connector, used for “one inlet, two outlets” insulating connection accessories for equipment bushing interfaces.

IX. Implementation Standards and Certification

• International Standard: IEEE 386 “Medium Voltage Detachable Cable Connector Standard”;
• National standards: GB/T 12706 “Extruded insulated power cables and accessories with rated voltage of 1kV (Um=1.2kV) to 35kV (Um=40.5kV)”, GB/T 11022 “Common technical requirements for high voltage switchgear and controlgear standards”, DL/T 404 “3.6kV~40.5kV AC metal-enclosed switchgear and controlgear”;
• The product has passed the type test of the National High Voltage Electrical Apparatus Quality Supervision and Inspection Center and meets national electrical safety standards.

X. After-sales service

• Product warranty period: 18 months from the date of manufacture, or 12 months from the date of commissioning (whichever comes first).
• During the warranty period, products will be repaired or replaced free of charge if quality issues arise.
• We provide technical support, installation guidance, and customized services (adaptation to special specifications and working conditions).

Document Description

The technical parameters in this manual are based on standard operating conditions. Special operating conditions need to be customized according to actual needs. The final specifications shall be subject to the product technical agreement and type test report.

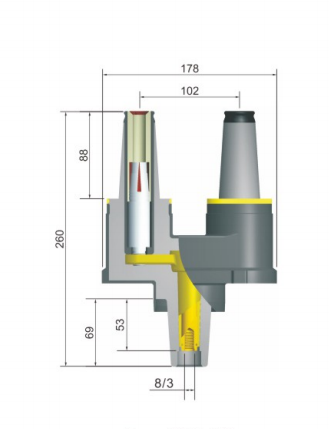

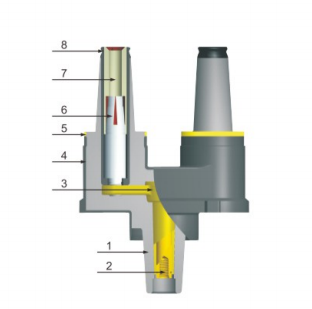

Appendix: Product outline diagram
