Product Overview
XTKB-700 Intelligent Control Device (or Smart Controller) is a computer-based control unit embedded within electronic equipment or systems. It acts as the “brain” of a system, automatically identifying, processing, and responding to information to achieve precise automated control over a target device or environment.
Functional Description
It features dynamic simulation display diagrams, temperature and humidity control inside the cabinet, high-voltage live display and locking functions, voice error prevention prompts, on/off switch indicators, energy storage indicators, remote/local operation, on/off switch operation, lighting operation, RS-485 communication interface, and other functions. It can directly replace existing primary circuit simulation diagrams and temperature and humidity controllers, effectively enhancing the quality of switchgear. The product is designed as an integrated layout to match the switchgear, greatly simplifying the structural design of the switchgear and beautifying the panel layout.
Main Functions & Technical Parameters
| Item | Parameter |
|---|---|
| Operating Voltage | AC/DC 165~265V |
| Dielectric Strength | ≥ AC2000V |
| Insulation Performance | ≥ 100MΩ |
| Power Consumption of Voltage Circuit | ≤ 8VA |
| Anti-Electromagnetic Interference | Complies with IEC255-22 |
| Dynamic Blink Frequency | 2 times/sec |
| Humidity Control Range | 20-100%RH |
| Temperature Control Range | -20°C ~ +100°C |
| Association Between Digital Input Terminals and LED Digital Display | Dynamic Configuration |
| Communication Mode | RS485, ModBus Protocol |

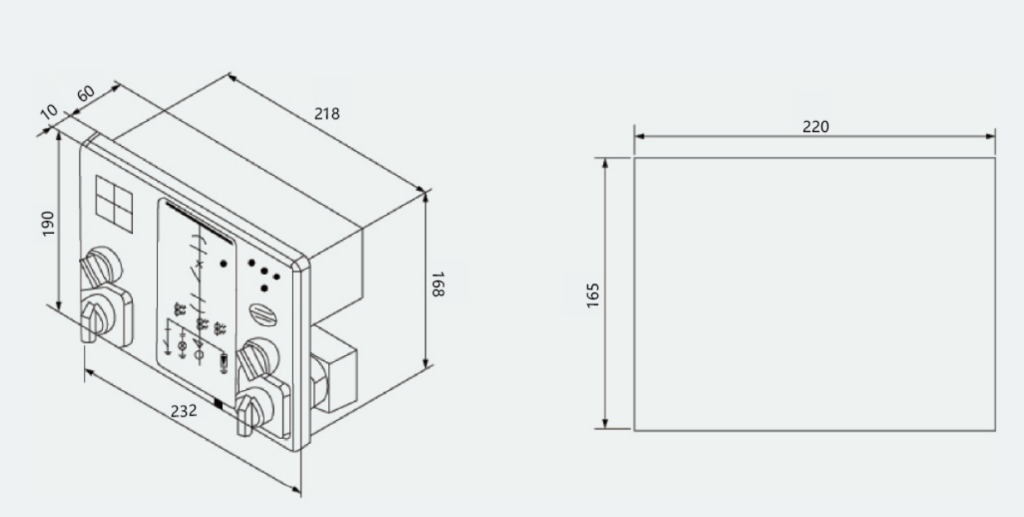

Overall Dimensions: 180mm (H) × 230mm (W)
Cutout Dimensions: 165mm (H) × 220mm (W)
