Product Overview
XRNP1 High-Voltage Current-Limiting Fuse is suitable for overload and short-circuit protection of voltage transformers in indoor AC 50Hz systems with a rated voltage of 3.6–40.5kV. (It has passed the type test of the National Supervision and Inspection Center for High-Voltage Electrical Apparatus Quality, and complies with GB 15166.2 and IEC 282-1 standards.)
12kV Cable Model Configuration Table
| Product Model | Rated Voltage (kV) | Fuse Rated Current (A) | Breaking Capacity (kA) | Dimensions (mm) |
|---|---|---|---|---|

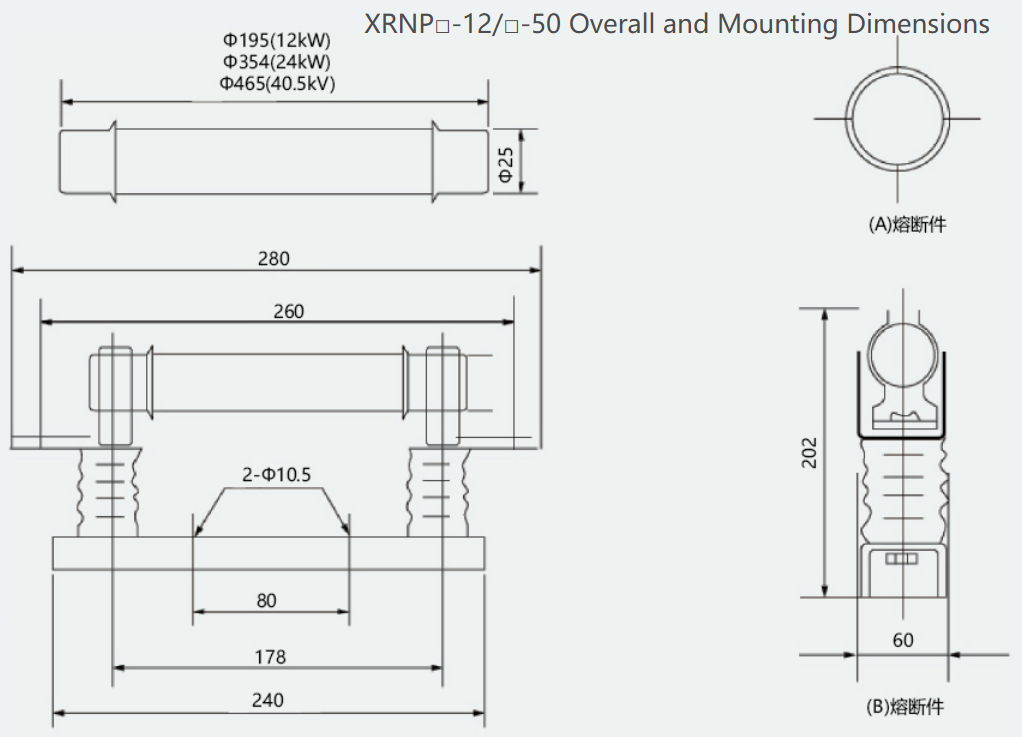

| XRNP1 | 3.6, 7.2, 10, 12 | 0.2, 0.3, 0.5, 1, 2, 3.15 | 50 | Φ25×195 |

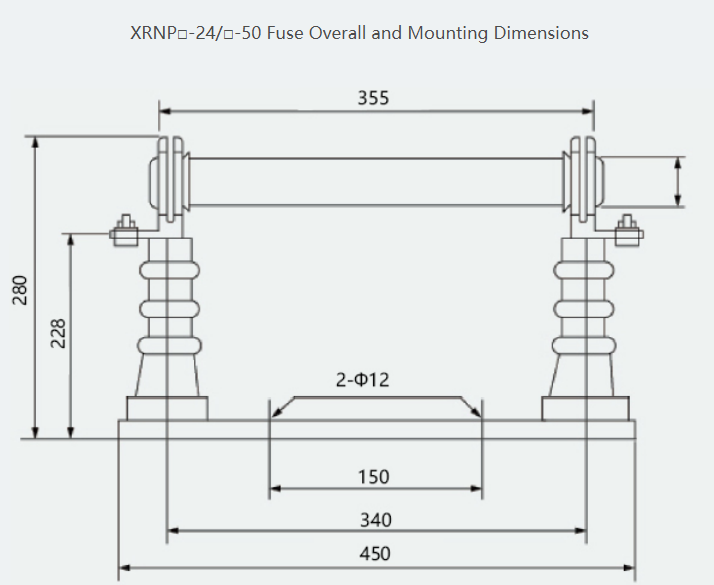

| XRNP1 | 20, 24 | 0.2, 0.3, 0.5, 1, 2, 3.15 | 50 | Φ25×355 |

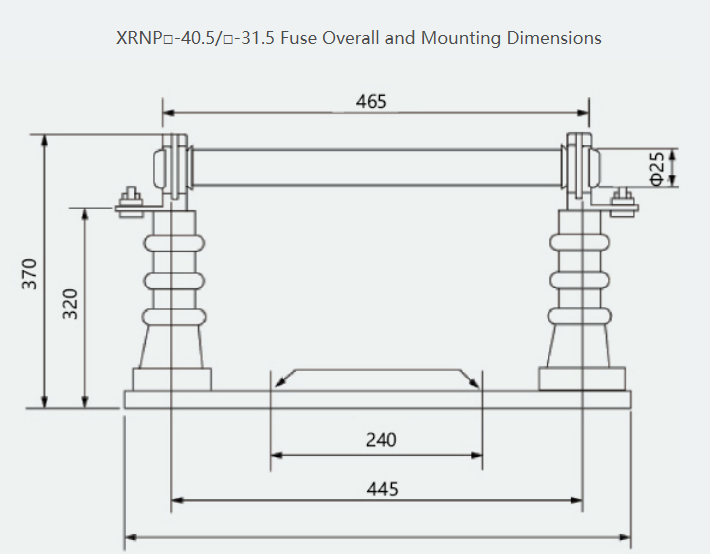

| XRNP1 | 35, 40.5 | 0.2, 0.3, 0.5, 1, 2, 3.15 | 31.5, 50 | Φ25×465 |
| XRNP2 | 12 | 3.15, 5, 6.3, 10, 16 | 50 | Φ51×192 |
| XRNP3 | 40.5 | 0.2, 0.3, 1, 2, 3.15 | 31.5 | Φ30×400(465) |
| XRNP4 | 12 | 0.2, 0.3, 0.5, 1, 2, 3.15 | 50 | Φ25×235 |
| XRNP4 | 24 | 0.2, 0.3, 0.5, 1, 2, 3.15 | 50 | Φ25×395 |
| XRNP6 | 40.5 | 0.2, 0.3, 0.5, 1, 2, 3.15, 5, 6.3 | 31.5 | Φ40×440 |
